PRODUCT FEATURES
The TFS 500 P floor saw machine is designed with a cutting depth capacity of up to 180 mm, making it a reliable solution for demanding construction projects. Its ability to cut through concrete slabs, pavements, and asphalt surfaces ensures that it can handle substantial cutting tasks with accuracy and efficiency.
Cutting Capacity
Equipped with a durable protective blade guard, the TFS 500 P ensures safe operation by minimizing exposure to the cutting blade and preventing debris from causing hazards. This robust safety feature enhances operator protection and machine reliability.
Robust Heavy-Duty Belt Guard
The Honda GX200 engine provides 7.5 HP of consistent cutting power, allowing the TFS 500 P to cut through even the toughest surfaces. This petrol engine ensures reliability, portability, and independence from external power sources, making it ideal for outdoor worksites.
Powerful 7.5 HP Motor
The TFS 500 P is built with a reinforced steel frame and sturdy construction, enabling it to withstand rugged site conditions and reduce vibration during operation. Its durability guarantees long service life and consistent performance across multiple projects.
Durable IP 65 Motor with Copper Winding
Designed for ease of use, the TFS 500 P includes simple controls and a balanced frame, allowing operators to achieve smooth and precise cutting with minimal effort. Its intuitive design reduces downtime and increases work efficiency.
User-Friendly Operation
The ergonomic handle design allows for comfortable, fatigue-free operation during extended use. By providing better grip and smoother control, it ensures accuracy and productivity in demanding construction environments.
Ergonomic Handle with Lead Screw

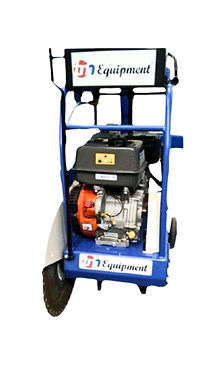

TFS 500 P - Floor Saw Machine
Powerful GX200 HONDA Petrol Engine Based Floor Saw Machine
The TFS 500 P is a powerful and durable petrol floor saw machine designed to meet the toughest requirements of professional contractors and construction companies. Built for road cutting, slab cutting, and concrete floor works, it delivers consistent performance and precision even in the most demanding conditions.
Powered by the renowned Honda GX200 petrol engine (7.5 HP), the TFS 500 P provides reliable cutting performance without dependence on external electricity, making it the perfect choice for outdoor worksites and infrastructure projects. Its cutting capacity of up to 180 mm ensures it can easily handle thick concrete and asphalt surfaces with accuracy.
Operator safety and comfort are a top priority. The TFS 500 P features a heavy-duty protective blade guard to minimize risks, while its ergonomic handle ensures reduced fatigue and effortless handling during extended cutting operations. Built with heavy-duty construction, the machine is engineered to withstand vibration, tough conditions, and long working hours.
In short, the TFS 500 P petrol floor saw machine is a robust, user-friendly, and highly efficient concrete cutting solution, combining the strength of a Honda petrol engine with advanced design features to ensure maximum productivity and operator safety.
EXPLODED VIEW
Sequence | Part Name | Part Number | Quantity |
|---|
PART LIST
TECH SPECS
ADDITIONAL DETAILS
Dimensions:
The TFS 500 P petrol floor saw machine is designed with a compact yet robust structure, enabling excellent maneuverability on construction sites. Its well-balanced design ensures it can be easily positioned and guided in confined or open spaces, making it highly versatile across different work environments.
Weight:
Constructed with heavy-duty steel and durable components, the TFS 500 P achieves the perfect balance between portability and stability. With its substantial weight, the machine remains steady during cutting operations, minimizing vibration and ensuring accurate, clean, and consistent cuts. At the same time, its ergonomic design allows operators to handle and transport the machine with relative ease.
Cutting Capacity:
Engineered for demanding applications, the TFS 500 P offers a cutting depth capacity of up to 180 mm, making it highly effective for a variety of materials such as concrete slabs, pavements, and asphalt roads. This deep cutting capability allows contractors to efficiently handle both standard floor cutting tasks and heavy-duty infrastructure projects, ensuring precision and productivity in every application.
SPECIFICATIONS
Compact Design:
The TFS 500 P petrol floor saw machine is built with a space-efficient and well-balanced design, allowing for excellent maneuverability on worksites. Its compact footprint ensures smooth operation in both wide-open areas and more confined environments, making it versatile across a range of construction applications.
Sturdy Build:
Engineered with heavy-duty steel construction, the TFS 500 P offers durability and strength while maintaining ease of handling. Its substantial weight provides superior stability during cutting, reducing vibration and enhancing accuracy. This balance between robustness and portability ensures long-lasting performance and consistent results.
Efficient Cutting Capability:
With a cutting depth capacity of up to 180 mm, the TFS 500 P is purpose-built for roadworks, slab cutting, and concrete floor applications. It is capable of delivering deep, precise, and clean cuts, making it suitable for demanding projects where accuracy and productivity are critical.
Dependable Performance:
Powered by the Honda GX200 petrol engine (7.5 HP), the TFS 500 P ensures consistent and powerful cutting performance. Its proven engine reliability, combined with rugged construction, makes it a dependable choice for professionals who require a machine capable of handling heavy workloads in challenging site conditions.
Safety is of utmost importance when using the machine. TM Equipment has implemented various safety features to ensure the well-being of operators during operation.
SAFETY DETAILS
It is crucial to read and follow the manufacturer's instructions, including safety guidelines and precautions, provided in the machine's user manual. By adhering to these safety measures, operators can minimize the risk of accidents and work confidently with the cutting machine.
Protective Guards:The TFS 500 P petrol floor saw machine is equipped with heavy-duty blade guards that serve as a protective barrier between the operator and moving parts. These guards minimize exposure to dust, debris, and the cutting blade, significantly reducing the risk of accidents and injuries during operation.
Engine Safety & Stability:Powered by the Honda GX200 petrol engine, the machine ensures reliable performance with built-in safety standards from Honda. The heavy-duty frame provides additional stability, preventing unnecessary vibrations or tipping, which enhances safe handling during continuous cutting tasks.
Operator Ergonomics:Designed with an ergonomic handle system, the TFS 500 P allows operators to maintain proper posture and control during extended use. This ergonomic design reduces fatigue and helps prevent operational errors, contributing to safer working conditions.
Safety Switches (Recommended):Though petrol-powered machines differ from electric saws, operators should ensure proper ignition control and safety mechanisms are engaged before use. This prevents unintentional starts and ensures that the floor saw machine is only operated under controlled conditions.
Operator Training: TM Equipment strongly recommends that all operators receive comprehensive training before using the TFS 500 P. Training should include:
Safe operating procedures and correct handling techniques
Proper maintenance routines for the Honda engine and cutting components
Usage of personal protective equipment (PPE) such as safety goggles, gloves, safety boots, ear protection, and dust masks
APPLICATIONS
The TFS 500 P floor saw machine is ideal for a wide range of professional applications, including:
Road & Highway Construction – For cutting asphalt, concrete, and road surfaces during expansion or maintenance projects.
Flooring Projects – Perfect for cutting concrete slabs in industrial flooring, warehouses, and large building projects.
Repair & Maintenance Works – Used for expansion joint cutting, patching, and repair in roads, pavements, and airport runways.
Demolition & Renovation – Suitable for controlled cutting of concrete during structural modifications.
